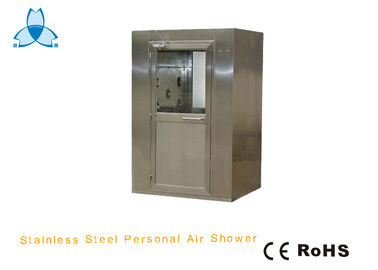

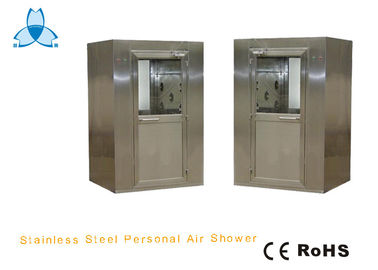

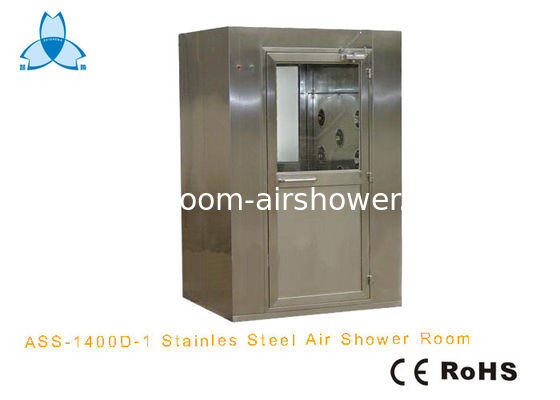

Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment

Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment
Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment

ภาพใหญ่ :  Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment

รายละเอียดสินค้า:
Place of Origin: Guangdong, China (Mainland)
ชื่อแบรนด์: Zhisheng
ได้รับการรับรอง: ISO 9001/CE/ROHS
Model Number: ASS-1500D-1
การชำระเงิน:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: 10-15 days after receive prepayment
Payment Terms: T/T, Western Union
Supply Ability: 200 Set/Sets per Month

Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment

ลักษณะ
Condition: New Dimension(L*W*H): 1500x1000x2100mm
Weight: 300KG Shower time: 0-99s
Wind speed: 23-25m/s Class: 100 class
แสงสูง:

Air Jet Shower

,

class 100 clean room



ISO 5 Stainless Steel Personnel Air Jet Shower Room With Width 900 Single leaf Swing Doors



Door Width: 900mm Single leaf Swing Door





Description:



Air Shower for clean room is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.



Blowing type: single-side blowing, double-side blowing, three-side blowing.



Operating



1: Clean room air showers are PCL control system with LED display for the shower time. Comply with CE Test



2: the clean room air showers duration time adjustable from 0-99second.



3: Infrared ray inductor for inside personal shower automatic.



4: Human being voice remind of user progress in chamber.



5: Emergency switch help you out of trouble, if clean room air showers failed to control.



Optional parts:


1. Infrared sensor auto sliding door,


2. ULPA filter


3. SUS304


4. No base plate, it is easy for truck to pass (called cargo air shower)


5. Yellow fluorescent lamp / UV lamp / Emergency switch


6. Anti-static system





Parameter:



Product type Stainless Steel Air Shower
Material for casing T=1.2MM Full SS304 for External and internal cabinet
Material for doors Stainless steel 304
Nozzles Stainles steel
Door leaf Single leaf
Door type Manual swing door
Blowing way Three-side blowing
Control system English intelligent control panel with human voice
Locks Electric mortise lock
HEPA filter efficinecy: 99.99%
Pre filter G3
Light Philips brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 25-27m/s above
Power supply 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



 size and specificaton:



Product Stainless Steel Personnel Air Shower Room With Width 900 Single leaf Swing Doors
Model ASS-1500D-1
External dimensions (mm) W1500*D1000*H2100MM
Internal dimensions WxHxD(mm) W900*D900*H1950MM
Doors 2 sets of SS single-leaf swing door
Door closer 2 sets (Outside)
Lock 2sets of electric magnetic locks interlocked
Suitable person Single person
Nozzles 6+6=12PCS(2-side blowing )
Blower fan 2 sets
Blow power(W) 800W
Weight(kg) Appro.280
HEPA filter size 610x610x90mm
HEPA filter qty 2PCS
HEPA filter efficiency H13
Photolectric sensor ORMON 1 PCS
Fluorescent Lamp Philips 1x 20W
Nozzle diameter 32mm
Air shower time 0-99 s Adjustable
Spurt wind speed 22-25m/s
Power Supply AC380V/50Hz/3Ph
Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor




Drawing:

Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment 0Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment 1Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment 2Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment 3Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment 4Personnel Clean Room Air Showers Dust Removal Cleaning Room Equipment 5



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
