| ชื่อแบรนด์: | Zhisheng |
| เลขรุ่น: | ZS-CP-1 |
| MOQ: | 100 pieces |
| ระยะเวลาการจัดส่ง: | about 15 days upon receipt of deposit |
Corrugated - Type Pre Air Filter Can Be Used As The Filtering Materials
Wire mesh is a surface-type media.
It is made by weaving specific wire in predetermined patterns to form apertures of different shapes and sizes.
Plain square, twilled aquare, plain dutch, and twilled dutch are common weave patterns available.
Muti-layers metal mesh is sintered by two or more layers(2~12layers) of stainless steel wire mesh, which are compressed and sintered together in vacuum.
Its micron rating ranges from 0.5micron to 300micron.
1.Compress resistance
2.Long on-stream life
3.High temperature and corrosion resistance
4.Superior back pulse and backwash capabilities
5.No delamination
Specification:
| Product Details | Type | Panel filter, Pleated filter | |
| Feature | Large dust capacity,low drop | ||
| Frame | Cardboard/aluiminum/galvanzied | ||
| Media | Synthetic fiber | ||
| Size | Standard or Customerized | ||
| Metal gauze | Galvanzied/aluminum net | ||
| Efficiency | 30-50% (merv 7-merv 9) | ||
| Class | G3,G4 or F5 | ||
Size and specification:
| Model | Outside dimensions(mm) | Thickness(mm) | Rated air flow(m3/h) | Efficiency (%) |
Material | |
| ZS-CBA-1 | 595x595 | 21/46mm | 2000-3200 | G3 G4 |
Media | Non-woven fabric |
| ZS-CBA-2 | 595x295 | 21/46mm | 1000-1500 | Frame | Aluminum alloy / zinc galvanized | |
| ZS-CBA-3 | 595X495 | 21/46mm | 1500-2500 | Frame work | Common steel wire/ stainless steel wire | |
| ZS-CBA-4 | 900x495 | 21/46mm | 3000-5000 | Wire mesh | Galvanized Steel Wire mesh/Aluminum alloy |
|

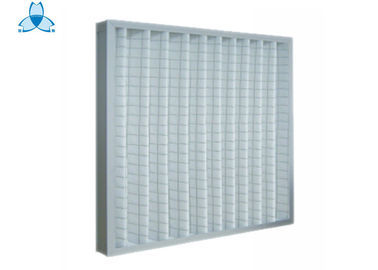

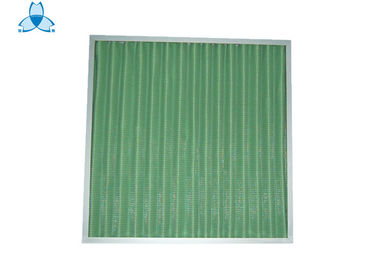

Picture :
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
|
|
