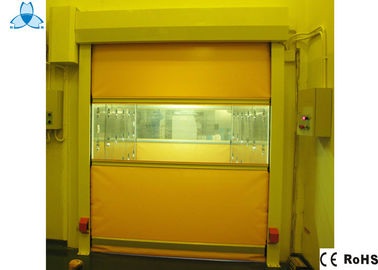

Sus 304 Cargo Cleanroom Air Shower With Automatic Shutter Door
It is usually for a large air shower for many people or cargo curt.
CE and ROHS Certificate
Description:
Clean room Air Shower is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.
Material:
Outside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)
Inside case: 1.2mm cold rolled steel with powder coated or staniless steel(SUS#201 OR 304)
Doors: SUS#201,SUS#304 or aluminum alloy (single-leaf door width: 800-1200mm)
Base: SUS#201 or 304
Nozzles:SUS#304
Features:
| Product type | Air shower room for clean room |
| Material for casing | 1.2mm cold rolled steel with powder coated /stainless steel (SUS#201 or SUS#304) |
| Material for doors | Stainless steel / aluminum alloy / powder coated steel |
| Nozzles | SUS#304 |
| Door leaf | Single leaf / double-leaf |
| Door type | Manual swing door/ Auto sliding door/ High speed shutter door |
| Blowing way | Top-side blowing, single-side blowing, two-side blowing or three-side blowing |
| Control system | English intelligent control panel with human voice (If client requrie control by PLC, it is also ok) |
| Locks | Electric mortise lock or Electric magnetic lock |
| HEPA filter efficinecy: | H13 / H14 |
| Pre filter | G3 / G4 |
| Light | Philipines brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 22-25m/s above |
| Power supply | 380V/50HZ/3PH or 220V/50HZ/1PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Standar size and specificaton:
Air Shower Projects
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
We have CE and ROHS Certificate for air shower
