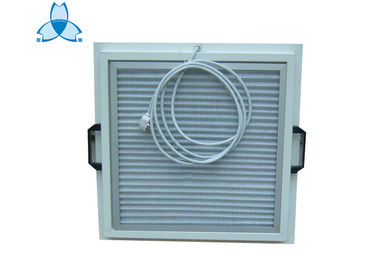

Mini Cleanroom Ffu With G4 Pre Filter And H14 Hepa , Low Operation Power Consumption

Mini Cleanroom Ffu With G4 Pre Filter And H14 Hepa , Low Operation Power Consumption

Mini Cleanroom Ffu With G4 Pre Filter And H14 Hepa , Low Operation Power Consumption

รายละเอียดสินค้า:

Place of Origin: Guangdong, China (Mainland)
ชื่อแบรนด์: Zhisheng
ได้รับการรับรอง: ISO9001
Model Number: ZS-FFU500

การชำระเงิน:

Minimum Order Quantity: 10 sets
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 500set per month
ติดต่อตอนนี้
รายละเอียดสินค้า
Size: 500*500*350 Material: Cold Rolled steel with powder coated
Noise: 54db Air velocity: 0.25-0.65m/s
Pre filter Efficiency: G4 Pressure Drop: ≤220pa



Mini For Cleanroom Fan Filter Unit With G4 Pre Filter and H14 Hepa



Description:



FFU Mini HEPA Filter is different for different size, cleanliness level of clean room microenvironment, clean bench, clean production, the assembly type clean room and laminar covers and other applications high-tech and humanization of computer software system system, the head of 7905 up, also can design according to clients’ requirements for additional monitoring system.



Feactures :



1. Adjustable speed



2. Fan box and filter fission, easy replacement



Standard Size and Specification



Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for cabinet(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
Average Air flow(m3/h) 600 900 1080 1200
Air velocity(Tested under filter300mm) 0.35-0.6m/s
ESP 80-120pa
HEPA filter Size(mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13 @0.3um
Pressure Drop ≤220pa
Fan(motor) Power AC 220V/50Hz;AC110V/60Hz
Noise(dB) 52 52 52 53
Optional Control panel, Remote control, Pre filter, Pressure gauge
Weight(KG) 22 24 28 32



Drawing:

Mini Cleanroom Ffu With G4 Pre Filter And H14 Hepa , Low Operation Power Consumption





Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
