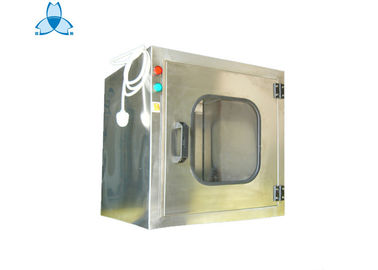

Dynamic Air Shower Pass Box With HEPA Filter For Chemical Industry

Dynamic Air Shower Pass Box With HEPA Filter For Chemical Industry

รายละเอียดสินค้า:

Place of Origin: Guangdong, China (Mainland)
ชื่อแบรนด์: Zhisheng
ได้รับการรับรอง: ISO9001
Model Number: ZS-CC-03

การชำระเงิน:

Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 200sets per month
ติดต่อตอนนี้
รายละเอียดสินค้า
Material: stainless steel for inside and outside Lock type: Electric interlock
Internal size: 800*800*600 Color: Optional color
Type: pass through box Application: clean room



For Clean Room ProjectMechanical Interlocked Air Shower Pass Thru



Pass box is a wall mounted pass box used for controlling cross contamination between two zones.



The pass box come with a mechanical or electrical interlock system so that only one door can be opened at a time.



The pass box are available in powder coated steel, 304 stainless steel construction and 316 stainless steel construction.



A properly designed pass thru unit increases cleanroom efficiency by moving materials quickly and effectively in and out of your cleanroom.



As a result, unnecessary employee traffic is eliminated and contamination levels are greatly reduced.



Standard Features



  • Clear acrylic doors
  • Vinyl bulb gasket seals for the doors
  • stainless steel for inside
  • A mechanical interlock (except for units with fire rated doors)

Optional Features

  • HEPA filters
  • Fan filter units
  • Electric interlock system
  • Support brackets
  • Electro-polished finish for stainless steel pass box
  • Double wall construction (painted and stainless steel)
  • 304 Stainless Steel door frames with 1/4" thick clear tempered glass
  • Stainless steel/spring loaded door latch
  • UV light

Application



It mainly applied to the goods transimission between the clean and non-clean areas, preventing the outside dust particles from coming into the clean area due to air circulation.

The possible pollution to clean room can be minimized, so the cleanliness of the clean room can be maintain



Specification:



Product Static Pass Box
Construction Stainless Steel 304 / 316 / 316L
Door Solid door w/ mechanical or electrical interlocked
Window Tempered Glass
Accessories Hour meter
Electricals Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps
Window Tempered Glass
UV Lamp Optional
HEPA Filter Optional
Filtration efficiency ≥ 99.99% @ ≥ 0.3μm
Power Supply 220 / 230 Volts
Certifications CE and ISO





Standard size:



Model ZS-CC1 ZS-CC2 ZS-CC3
External dimensions (W x D x H) 685x460x590 785x660x690 985x660x890
Size for working area ((W x D x H) 500x400x500 600x600x600 800x800x600
Material stainless steel for inside and outside
Lock type Electric interlock
Windows Clear Acrylic sheet



Product Pass box with air shower
Model ZS-FLP-1300 ZS-FLP-1400 ZS-FLP-1750
External dimensions (W x D x H) 820x560x1300 920x660x1400 920x660x1750
Size for working area ((W x D x H) 500x500x600 600x600x600 600x600x600
Material Cold rollled steel with powder coated or stainless steel
Lock type Mechanical interlock or Electric interlock
Windows Clear Acrylic sheet



we can offer special size and requirement as per our clients.



Drawing:



Dynamic Air Shower Pass Box With HEPA Filter For Chemical Industry



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.
