Commercial Hepa Clean Air Filter For Air Conditioner HVAC Ventilation System

Commercial Hepa Clean Air Filter For Air Conditioner HVAC Ventilation System

Commercial Hepa Clean Air Filter For Air Conditioner HVAC Ventilation System

รายละเอียดสินค้า:

Place of Origin: Guangdong, China (Mainland)
ชื่อแบรนด์: Zhisheng
ได้รับการรับรอง: ISO 9001, Rohs
Model Number: ZS-GW915-2

การชำระเงิน:

Minimum Order Quantity: 50 pieces
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 500 pieces per month
ติดต่อตอนนี้
รายละเอียดสินค้า
Efficiency: 99.99%, H13-H14 Media: Fiber Glass
Size: 915x610x69 Frame: aluminum
Face guard: Both face guard Initial resistance: ≤220pa





Air Filter Fiberglass Media For Cleanroom Mini Pleat Hepa Air Filter



Description:



Apply automatic production line to make make mini pleated cartridge, black carboard framework, foam wrapped on the back edge to provide positive seal, electrostactic high quality material to promise high efficiency,HEPA materials are available in six types: PP filter paper, glass fiber, compound PP+PET filter paper, meltblown+polyester non-woven, meltblown+glass fiber,PTFE(Washable )



Applications:

It is an ideal terminal filtering device for the clean-up system of FFU, clean bench, clean booth, clean room etc.
It is extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron,
semiconductor, precision mechanism, pharmacy, hospital and food, etc., which required relatively high cleanliness
factors.

Material and operating conditions:


External frame Cardboard, aluminum alloy or GI
Sealant Polyurethane
Separator hot-melt
Filter media PP, PP/PET, fiberglass or HV fiberglass
Maximum operating temperature 80°C
Maximum operating humidity 80%
HEPA filter Efficiency ≥95%-99.995%



Features:

1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
95%-99.99995%@0.3um (EN1822).
7: Each air filter with test report accompany

Size and Specification:


Model Dimensions(mm)

Rated air flow

(m³/h)

Initial resistance

(Pa)

Efficiency
(MPPS)
ZS-GW305-1 305x305x50 180 ≤220(fiberglass) ≥99.97%-99.995%
(H13-H14)
ZS-GW305-2 305x305x69 250
ZS-GW610-1 610x610x50 700
ZS-GW610-2 610x610x69 1000
ZS-GW915-1 915x610x50 1100
ZS-GW915-2 915x610x69 1500
ZS-GW1220 1220x610x69 2000
ZS-GW305-2 305x305x80 300
ZS-GW610-3 610x610x80 1300
ZS-GW915-3 915x610x80 1900
ZS-GW915-3 915x610x90 1900

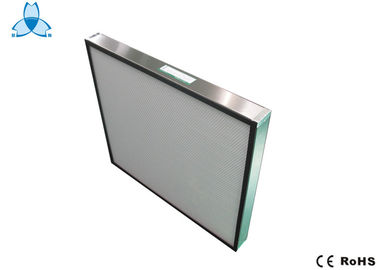

Pictures of HEPA filter

Commercial Hepa Clean Air Filter For Air Conditioner HVAC Ventilation System

Packing :



Commercial Hepa Clean Air Filter For Air Conditioner HVAC Ventilation System


Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Delivery time:

Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.

After sales service:

We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
