High Efficiency Pocket Air Filter Plastic Frame , Aluminum Frame Or Galvanized Optional

High Efficiency Pocket Air Filter Plastic Frame , Aluminum Frame Or Galvanized Optional

    • High Efficiency Pocket Air Filter Plastic Frame , Aluminum Frame Or Galvanized Optional
  • High Efficiency Pocket Air Filter Plastic Frame , Aluminum Frame Or Galvanized Optional

    รายละเอียดสินค้า:

    Place of Origin: Guangdong, China (Mainland)
    ชื่อแบรนด์: Zhisheng
    ได้รับการรับรอง: ISO9001, Rohs
    Model Number: ZS-F7

    การชำระเงิน:

    Minimum Order Quantity: 100 pcs
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Supply Ability: 1000 pieces
    ติดต่อ
    รายละเอียดสินค้า
    Frame: ABS plastic Material: fiberglass
    Class: F5-F8 Size: 595*295*500mm
    Color: yellow/prangr/purple/primrose yellow Application: air conditionings
    แสงสูง:

    hvac hepa filter

    ,

    air bag filter



    Plastic Frame , Aluminum Frame Or Galvanized Optional Pocket Air Filter



    Advantages



    l Multi-pocket bag filter

    l Comprehensive range of standard size

    l Robust Metal header frame

    l Unique pocket design

    l Large surface area

    l Controlled media spacing



    Application:



    Used as first stage filters of high efficiency filters and as secondary stage filters of air condition system; typical applications include electronics, precise instrument, machinery, metallurgy, chemical, textile, pharmaceuticals, foods and many other locations where ultra-clean air is required.



    Features:



    Product type Synthetic fiber pocket filter for second stage gas turbine
    Media Synthetic fiber(3-layer) / Mircro glass fiber
    Frame Galvanized /Aluminum /ABS plastic
    Class F5-F9 (EN799)
    Average Efficiency 45%; 65%; 85%; 95%;
    Media color White, Orange(Green), Pink, Yellow
    Initial pressure drop 50-120 pa (0.2-0.48 WG)
    Final pressure drop 200-500 pa(0.8-2 WG)
    Operating temperature 80 ºC
    Humidity resistance: 100%





    Standard size and specification:



    Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
    Dust-spot EN799 Frame Media
    ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

    Aluminum /Galvanized Sheet/

    plastic

    Non-woven fabric (synthetic fiber)

    495x495x500 (20”x20”x20”) 1800 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

    ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5

    495x495x500 (20”x20”x20”) 1800 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

    ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5

    495x495x500 (20”x20”x20”) 1800 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

    ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

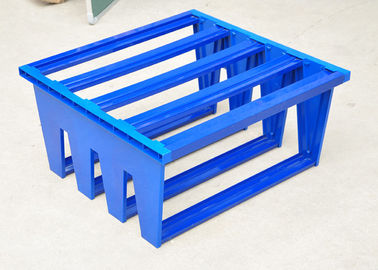

    Picture :



    High Efficiency Pocket Air Filter Plastic Frame , Aluminum Frame Or Galvanized Optional 0



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    • Familiar with equipment.



    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.
