รายละเอียดสินค้า:
|
| Frame: | paper | Media: | non-wowen fabric |
|---|---|---|---|
| Size: | 484*484*44mm | Efficiency: | G3 |
| Rated air flow: | 2000 m3/h | Color: | Blue |
| แสงสูง: | air filter pre filter,pre filter air filter |
||
Customer's Size Initial Resistance 30 Pa Pre Industrial Air Filter
Capacity:
Media: Polyester
Frame: Paper, aluminum or galvanized
Protect mesh: Aluminum net or stainless steel net
Face net:Spot mesh,Expanded mesh
Large filter area
Low initial resistance
Large dust holding capacity
Economical and practical
Efficiency:G3/G4 (EN779)
Recommended final Pressure drop:200Pa
Different sizes and specifications are available
Operating conditions:
Temperature:≤70℃
Humidity:≤90%RH
Applications:
Used as Prefilters in commercial and industial central air conditioning systems
Specification:
| Product Details | Type | Panel filter, Pleated filter | |
| Feature | Large dust capacity,low drop | ||
| Frame | Cardboard/aluiminum/galvanzied | ||
| Media | Synthetic fiber | ||
| Size | Standard or Customerized | ||
| Metal gauze | Galvanzied/aluminum net | ||
| Efficiency | 30-50% (merv 7-merv 9) | ||
| Class | G3,G4 or F5 | ||
Size and specification:
| Model | Outside dimensions(mm) |
Initial resistance(Pa) |
Rated air flow(m3/h) |
Efficiency(%) | Material |
| ZS-CB-3200 | 595x595x46 | 30 | 3200 | 30%(G3) | Media :Synthetic fiber |
| ZS-CB-1600 | 595x295x46 | 1600 | Frame :cardboard | ||
| ZS-CB-2000 | 484x484x44 | 2000 | Metal gauze:Galvanized Steel/Aluminum alloy |

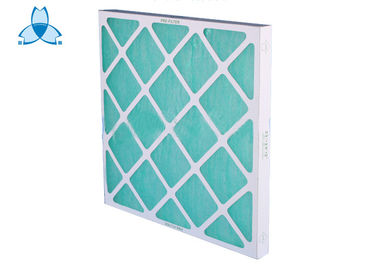

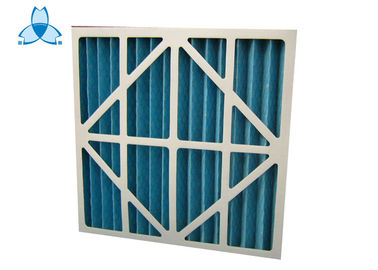

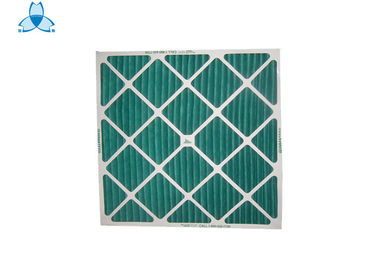

Picture:
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
