|Place of Origin:||Guangdong, China (Mainland)|
|ได้รับการรับรอง:||ISO 9001, Rohs|
|Minimum Order Quantity:||50 pieces|
|Packaging Details:||plywood case|
|Delivery Time:||about 15 days upon receipt of deposit|
|Supply Ability:||500 pieces per month|
|Size:||595x595x295mm||frame material:||ABS plastic|
|Initial resistance (Pa):||≤220pa||Porosity:||0.3Micro|
≥ 0 . 3 Micron v Bank Filter Used For Air Box System For Mid - Level
1) Box body with galvanized steel or plastic, use of superfine polypropylene filter paper or glass fiber filter paper.
2) Each filter subject to stringent leak testing
3) Application: ≥0.3 Micron
4) Uses: Used wind volume of air purification equipment, such as air box system for mid-level
Industrial and commercial ventilation systems, centralized ventilation and air conditioning system of clean room
Material and operating conditions:
|External frame||Aluminum Alloy/GI/Stainless steel|
|Separator||Clapboard or aluminum foil|
|Filter media||Fiberglass /HV fiberglass / PP|
|Maximum operating temperature||80°C|
|Maximum operating humidity||100%|
|HEPA filter Efficiency||≥99.99%|
1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
7: Each air filter with test report accompany
Size and Specification:
|Rated air flow

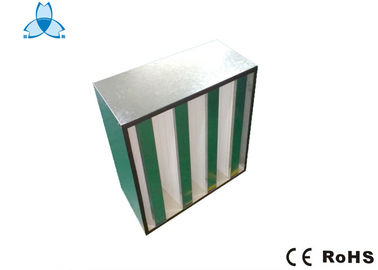

Pictures of HEPA filter
30% prepayment by T/T at order, the balance of payment before shipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
