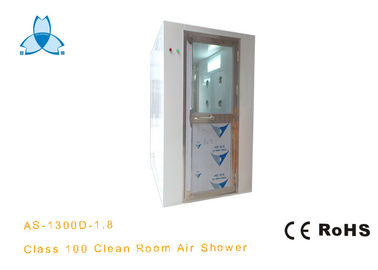

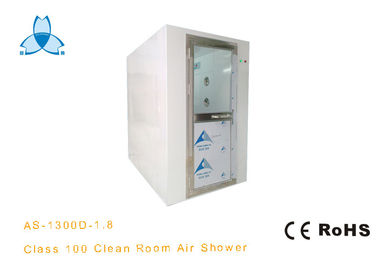

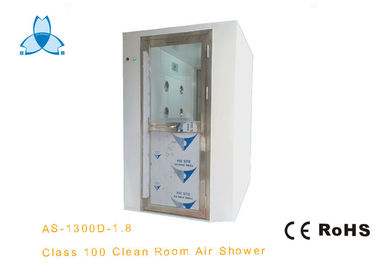

Powder Coated Cleanroom Air Shower , Dust Free Room With Single Leaf Swing Doors

    • Powder Coated Cleanroom Air Shower , Dust Free Room With Single Leaf Swing Doors
    • Powder Coated Cleanroom Air Shower , Dust Free Room With Single Leaf Swing Doors
    • Powder Coated Cleanroom Air Shower , Dust Free Room With Single Leaf Swing Doors
  • Powder Coated Cleanroom Air Shower , Dust Free Room With Single Leaf Swing Doors

    รายละเอียดสินค้า:

    Place of Origin: Guangdong, China (Mainland)
    ชื่อแบรนด์: Zhisheng
    ได้รับการรับรอง: ISO 9001/CE/ROHS
    Model Number: AS-1300D-1.8

    การชำระเงิน:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    ติดต่อตอนนี้
    รายละเอียดสินค้า
    Dimension: W1300xD1800xH2050mm Surface finish: Sraying painting
    Color: White Wind speed: 22-25m/s
    Door: Stainless steel 201 swing doors After-sales Service Provided: Engineers available to service machinery overseas
    Warranty: 1 year



    Powder Coated Steel Dust Removal Air Shower For Clean Room with Single-leaf Swing Doors



    Description:



    The air shower room is a very universal use device for partial purifying, which is installed in the walls between the clean room and the unclean room. At the meanwhile,



    not only can it remove dust from surfaces of the articles and personnel, but also can it be as a air brake, thereby preventing unauthorized purify air into the clean region



    to ensure the cleanliness of the air-conditioning system.





    Air shower has the features of elegant appearance, compact structure, easy maintenance and simple operation.



    Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and



    infrared sensing device according to customers' needs.



    Technical Parameter:



    Product type Dust Removal Air Shower For Clean Room
    Material for casing 1.2mm cold rolled steel with powder coated for mainbody, stainless steel for the base
    Material for doors Stainless steel 201 single-leaf swing doors
    Nozzles Stainless steel
    Door leaf W800mm Single-leaf
    Door type Manual swing doors
    Blowing way Three sides blowing
    Control system English intelligent control panel with human voice
    Locks Electric lock
    HEPA filter efficinecy: H13
    Pre filter G3
    Light Philipines brand
    Photoelectric sensor OMRON brand
    Shower time 0-60s adustable
    Spurt wind speed 22-25m/s above
    Power supply AC 380V/50HZ/3PH
    Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



    Size and specificaton:





    Product Dust Removal Air Shower For Clean Room
    Model AS-1300D-1.8
    External dimensions (mm) W1300*D1800*H2050MM
    Internal dimensions WxHxD(mm) W800*D1700*H1950MM
    Doors 2 sets of swing door
    Door closer 2 sets (outside)
    Lock 2 sets of electric locks interlocked
    Suitable person two person
    Nozzles 6+6=12 PCS(2-side blowing)
    Blower fan 2 sets
    Blow power(W) 800W
    Weight(kg) Appro.380
    HEPA filter size 610x610x69mm
    HEPA filter qty 2 PCS
    HEPA filter efficiency 99.99% @ 0.3um
    Photolectric sensor 1 PCS
    Fluorescent Lamp 1 x 20W
    Nozzle diameter 32mm
    Air shower time 0-60 s Adjustable
    Spurt wind speed 20~25m/s
    Power Supply AC380V/50Hz/3Ph
    Control system Microcomputer control circuit board





    Drawing:



    Powder Coated Cleanroom Air Shower , Dust Free Room With Single Leaf Swing Doors



    Packing: Plywood Case



    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international



    Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and



    the units individual results for each unit.



    Testing before shipment:



    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.






    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
