|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||about 15 days upon receipt of deposit|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 Set/Sets per Month|
|Dimension:||W1150xD1400xH2100mm||Surface finish:||Sraying painting|
|Door:||Stainless steel 201 single-leaf swing doors||After-sales Service Provided:||Engineers available to service machinery overseas|
air shower room,
air shower system

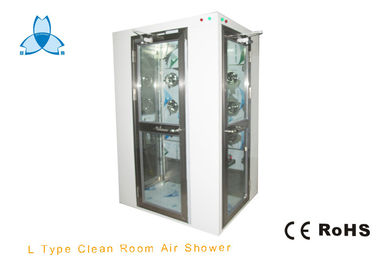

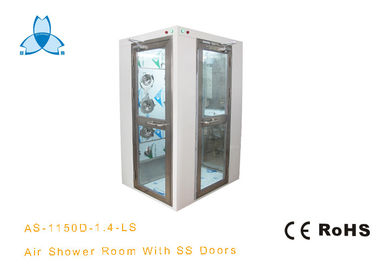

L Type GMP Clean Air Room Air Shower For Single Person To Europe
Decontamination is done by clearing off dust and dirt particles from bodies of cleanroom personnel to minimize contamination of equipment or products.
Designs to an air shower unit include single-side shower, double-side shower, three-side shower, and top shower.
Spraying wind speed is around 25 m/s or above through stainless steel nozzles.
Air showers are considered essential equipment in fields where sterile or dust-free conditions are critical,
|Product type||L Type GMP Clean Air Room Air Shower For Single Person To Europe|
|Material for casing||Power coated steel for ouside, stainless steel 201 for inside|
|Material for doors||Stainless steel single-leaf swing doors|
|Door type||W750mm Manual swing doors|
|Blowing way||2- side blowing|
|Control system||English IC intelligent control panel with English human voice|
|HEPA filter efficinecy:||H13|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||20-25m/s above|
|Power supply||AC 380V/50HZ/3PH|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
Size and specificaton:
|Product||L Type GMP Clean Air Room Air Shower For Single Person To Europe|
|External dimensions (mm)||W1150*D1400*H2100MM|
|Internal dimensions WxHxD(mm)||W750*D1300*H1960MM|
|Doors||2 sets of swing door|
|Door closer||2 sets (outside)|
|Lock||2 sets of electric locks interlocked|
|Suitable person||1-2 persons|
|Nozzles||18 PCS(3-side blowing)|
|Blower fan||1 set|
|HEPA filter size||915x610x69mm|
|HEPA filter qty||1 PCS|
|HEPA filter efficiency||H13|
|Photolectric sensor||ORMON 1 PCS|
|Fluorescent Lamp||Philips 1x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||20~25m/s|
|Control system||Microcomputer control circuit board|
Optional: 1. Emergency stop buttons
2. Ionizer Nozzle
Air Shower Details:
Packing: Plywood Case
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international
Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and
the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Air Shower Questions:
The below questions will help establish what air shower you need:
1. Is the air shower being used to enter a clean room environment?
2. Is the air shower being used to exit a contaminated enviroment?
3. Will the air shower be washed down or cleaned with harsh chemicals?
4. Will the air shower be used in a food processing facility?
5. How Mnay people will be going through the air shower at a given priod of time?
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
