|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||10-15 days after receive prepayment|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 Set/Sets per Month|
|Doors:||PVC Fast Rolling Shutter doors||Control:||PLC|
|Wind speed:||22-25m/s||Class:||100 class|
clean room air showers,
air shower cleanroom
Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter
Doors: Soft PVC Fast Speed Scrolled Doors
Door Net Width: 1800mm
ZHISHENG offers our Air Showers in different design configurations and materials of construction to meet your exact requirements.
Air Showers are designed to remove surface contamination from personnel prior to entering a Cleanroom or Clean Work Area such as a Paint Spray Booth.
Numerous contaminants can be introduced into a clean room environment by being transported on the outer garments of an individual entering a clean room,
and for that reason, many clean rooms will feature a personnel, equipment or productair shower.
An air shower is a self-contained unit that utilizes specialized, high efficiency air flow and other technologies to effectively remove all types of contaminants
from the every individual.
All of our Air Showers feature Hi-Flow V-Bank HEPA or ULPA Filters, recessed lights, Interlocking doors, and PLC Programmable Logic Controller and Emergency Stop buttons
We offer different types of Air Showers, S Series (Straight Thru Passage), L Series (Right Angle Passage) and T Series (3-door passage).
These units are also available in a Low-profile where the motor blower and HEPA Module are alongside the base unit instead of on top of the base.
Units can be coupled together to create a Tunnel configuration for passage of large groups of personnel.
Choose the correct type for your application or call and speak to one of our experienced sales engineers for assistance.
1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.
(One door in open state, the other door must in close state. When people enter air shower, the system will
shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel, good appearance.
5. When air shower is used to pass cargo, it is without bottom-board.
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
|Product type||Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter|
|Material for casing||T=1.2MM Steel with Spray painting for outside, stainless steel 304 for inside, no base|
|Material for doors||Soft PVC|
|Door type||High Speed Shutter Doors|
|Blowing way||3-side blowing|
English intelligent control panel with human voice and
PLC control system
|HEPA filter efficinecy:||99.99%|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||22-25m/s|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
size and specificaton:
|Product||Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter|
|External dimensions (mm)||W2300*D2950*H2300|
|Internal dimensions WxHxD(mm)||1800*D2950*H2000|
|Doors||2 sets of High speed shutter doors|
|Suitable||Both People and Goods|
|Nozzles||18+18+18=54 PCS(3-side blowing)|
|Blower fan||4 sets|
|HEPA filter size||610x610x90mm|
|HEPA filter qty||6PCS|
|HEPA filter efficiency||H13|
|Photolectric sensor||ORMON 2 PCS|
|Fluorescent Lamp||Philips 3x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||22-25m/s|
|Control system||Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

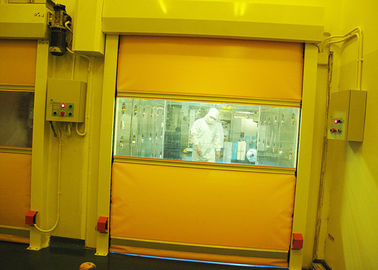

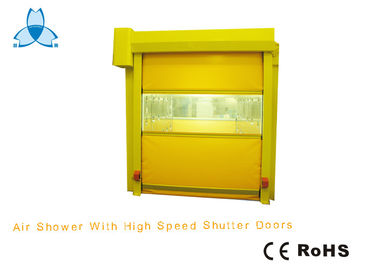

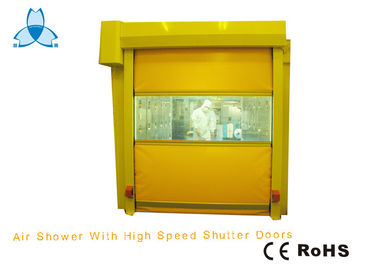

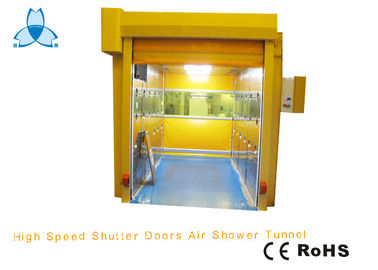

Air shower pictures:
Drawing Of Air Shower Tunnel
What is the air flow velocity inside the air shower?
When the shower cycle commences, pressurized air streams from adjustable nozzles at a velocity of up to 22-22 meter per second.
This ensures the necessary efficient scrubbing action to remove particulate matter.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
