Three Side Blowing Air Shower Room 100 Class For Materials And Goods

Three Side Blowing Air Shower Room 100 Class For Materials And Goods

    • Three Side Blowing Air Shower Room 100 Class For Materials And Goods
    • Three Side Blowing Air Shower Room 100 Class For Materials And Goods
    • Three Side Blowing Air Shower Room 100 Class For Materials And Goods
  • Three Side Blowing Air Shower Room 100 Class For Materials And Goods

    รายละเอียดสินค้า:

    Place of Origin: Guangdong, China (Mainland)
    ชื่อแบรนด์: Zhisheng
    ได้รับการรับรอง: ISO 9001/CE/ROHS
    Model Number: AS-3800T-2.6-AD

    การชำระเงิน:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: 10-15 days after receive prepayment
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    ติดต่อตอนนี้
    รายละเอียดสินค้า
    Condition: New EX Dimension: W3800*D2600*H2300MM
    In Dimension: W1800*D2600*H2100MM Doors: Double leaf sliding doors
    Wind speed: 22-25m/s Class: 100 class
    Material: Power coated steel for outside Color: White



    Cargo Clean Air Shower With Wide Automatic Double Leaf Sliding Doors And Three Side Blowing



    Doors:Automatic Double Leaf Sliding Doors



    Door Size: 1800mm x2100mm



    Description:



    Cargo Cleanroom  Air Shower Tunnel  for clean room is a kind of partial clean equipment with rather strong universality and is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.



    Blowing type: single-side blowing, double-side blowing, three-side blowing.



    Features:



    1. Completely self-contained, pre-wired, fully equipped Air Shower Tunnel systems help solve decontamination problems.



    2. Modular design lets you order a system to suit your cleanroom.



    3. HEPA filter/blower modules (rated 99.97% efficient @ 0.3 micron particles) wash personnel with Class 100 air to dislodge and remove particles.



    4. Solid-state microprocessor panel provides programmable control over access door operation.



    5. Electromagnetic interlocking doors minimize contamination and automatically release in the event of power failure or when the emergency stop button is pressed.



    6. Energy-efficient LED lighting mounted on the ceiling.



    7. Available in white powder-coated or stainless steel to meet various cleanroom requirements



    8. Variety of sizes and door configurations



    9. Economical to operate and easy to maintain



    10 An ionizing bar is available as an optional accessory.



    Parameter:



    Product type  Cargo Clean Air Shower With Wide Automatic Double Leaf Sliding Doors And Three Side Blowing
    Material for casing T=1.2MM Power coated steel for outside, SS304 for inside
    Material for doors Stainless steel 304
    Nozzles Stainles steel
    Door leaf Doubleleaf
    Door type Sliding doors
    Blowing way 3-side blowing
    Control system

    English intelligent control panel with human voice

    Locks Electric interlocked
    HEPA filter efficinecy: 99.99%
    Pre filter G3
    Light Philips brand
    Photoelectric sensor OMRON brand
    Shower time 0-99s adustable
    Spurt wind speed 25-27m/s above
    Power supply 380V/50HZ/3PH
    Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



     size and specificaton:



    Product Cargo Clean Air Shower With Wide Automatic Double Leaf Sliding Doors And Three Side Blowing
    Model AS-3800T-2.6-AD
    External dimensions (mm) W3800*D2600*H2300MM
    Internal dimensions mm W1800*D260*H2100MM
    Doors 2 sets of SS double-leaf sliding doors
    Door closer NONE
    Lock  electric interlocked
    Suitable  People and Goods
    Nozzles 16+16+18=54 PCS(3-side blowing)
    Blower fan 6 sets
    Blow power(W) 2400W
    Weight(kg) Appro.1000
    HEPA filter size 610x610x90mm
    HEPA filter qty 6 PCS
    HEPA filter efficiency H13
    Photolectric sensor ORMON 2 PCS
    Fluorescent Lamp Philips 3x 20W
    Nozzle diameter 32mm
    Air shower time 0-99 s Adjustable
    Spurt wind speed 22-25m/s
    Power Supply AC380V/50Hz/3Ph
    Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor




    Air shower Details:

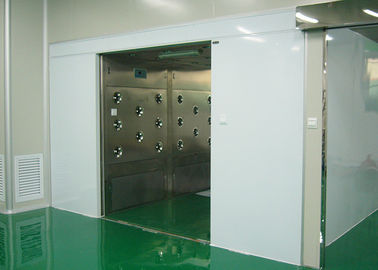

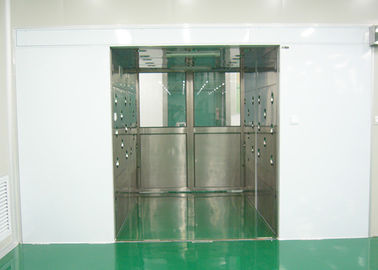

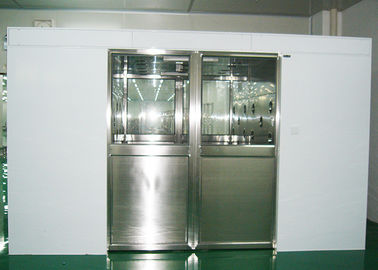

    Three Side Blowing Air Shower Room 100 Class For Materials And GoodsThree Side Blowing Air Shower Room 100 Class For Materials And Goods





    Drawing of Air Shower Tunnel



    Three Side Blowing Air Shower Room 100 Class For Materials And GoodsThree Side Blowing Air Shower Room 100 Class For Materials And GoodsThree Side Blowing Air Shower Room 100 Class For Materials And GoodsThree Side Blowing Air Shower Room 100 Class For Materials And Goods





    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



    Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.



    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
