Acrylic Hardwall Modular Clean Room / Clean Booth With AIr Shower And Pass Box

Acrylic Hardwall Modular Clean Room / Clean Booth With AIr Shower And Pass Box

    • Acrylic Hardwall Modular Clean Room / Clean Booth With AIr Shower And Pass Box
    • Acrylic Hardwall Modular Clean Room / Clean Booth With AIr Shower And Pass Box
    • Acrylic Hardwall Modular Clean Room / Clean Booth With AIr Shower And Pass Box
  • Acrylic Hardwall Modular Clean Room / Clean Booth With AIr Shower And Pass Box

    รายละเอียดสินค้า:

    Place of Origin: Guangdong, China (Mainland)
    ชื่อแบรนด์: ZHISHENG
    ได้รับการรับรอง: ISO 9001/CE/ROHS
    Model Number: ZS-HCB

    การชำระเงิน:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: 10-15 days
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    ติดต่อตอนนี้
    รายละเอียดสินค้า
    Frame: Aluminum alloy Wall: Acrylic
    Class: ISO 8 FFU: Galvanzied-aluminum

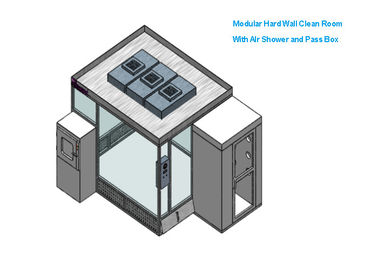

    Modular Hard Wall Clean Room With Air Shower And Pass Box



    ( Clean Booth)

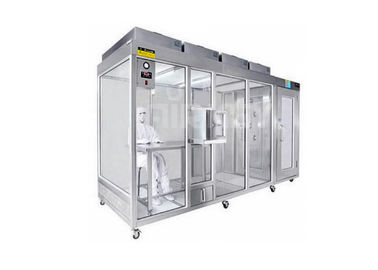

    Modular hard wall clean rooms provide the rigidity and durability of a freestanding room, unlike other modular structures that require internal bracing or ceiling supports. Select among three different panel materials and many lighting, pass-through, security-access and other options. All components are factory-assembled and tested before shipping. Configure the ceiling grid with modules such as lights and fan/filters to meet ISO 5 – 8 (Class100- Class 10000) requirements.





    Features:



    Clean room panels for the wall:

    -Tempered glass/Acrylic/anti-static transparent PVC



    Clean room panels for the ceiling:

    -Tempered glass/Acrylic/Anti-static transparent PVC/Aluminum plastic panel



    Structural Frame:

    -Aluminum alloy or Stainless steel



    Doors Type:

    -Swing door/Sliding door/Fast rolling door/Strip shield door



    Specification:

    Description Hard wall modular clean room
    Cleanliness Class 100 to Class 100,000
    Dimension (LXWXH) Designed as per customerized
    FFU Dimension 2x2, 2x4, 4x4 optional
    Casing Stainless steel, Galvanized-aluminum coated
    Power supply 110V/60HZ/AC; 220V/60HZ/AC
    Filter  HEPA filter/ULPA filter optional
    Material of frame Aluminum alloy / stainless steel 201/SUS 304
    Material of wall Tempered glass/Acrylic/Anti-static transparent PVC
    Ceiling Aluminium-plastic panel/Tempered glass/Acrylic/Anti-static transparent PVC





    Description Hard wall modular clean room
    Lighting Clean lighting LED/T5 optional
    Air conditioner Design as per requirements Constant temperature air conditioning /constant temperature and constant humidity air-conditioner; optional
    Air shower Optional
    Pass box Optional
    Buffer room Optional
    Airflow floor Optional
    Assembly line Optional
    Clean bench Optional
    Other clean room facilities Carry out design and installation as per customer requirements



    Size of Hard Wall Clean Room:



    Common specifications on module clean room
    Size (mm) Quantity of installed ceiling Number of filter of level 209 as per the Federal Reserve standard
    1 10 100 1,000
    8x8(2438x2438) 8 5-8 4-8 3-6 2-3
    8x12(2438x3658) 12 7-12 6-12 4-8 3-5
    8x16(2438x4877) 16 10-16 8-16 6-11 4-6
    12x12(3658x3658) 18 11-18 9-18 6-13 5-7
    12x16(3659x4877) 24 14-24 12-24 8-17 7-10
    16x16(4877x4877) 32 19-32 16-32 11-22 8-13
    20x20(6096x6096) 50 30-50 25-50 18-35 13-20



    Note: Besides specification above, we can customize as required.

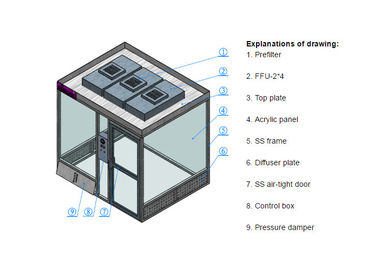

    Details of All Parts:



    Structure: The frame of hard wall clean booth has two selections: stainless steel and aluminum alloy;


    The stainless steel can resist corrosion and has high structural strength; aluminium alloy structure leads to easy assembly, standard accessories and good air tightness;



    Ceiling: Aluminium-plastic panel is light in weight, easy to install, and has multiple colors for selection; Other transparent panes are also OK.


    Wall: Transparent acrylic sheet is high in strength and low in price. The anti-static transparent PVC sheet may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber. It is applicable to modular clean room that requires high demand for cleanliness and static. If reduce the cost, tempered glass is a choice.



    FFU: Excellent energy-saving draught fan will be adopted, whose noise and energy consumption are on the low side. Meanwhile, the draught fan can be designated by customers, such as EBM of Germany. The casing is made of powder coated steel, galvanized aluminum steel or stainless steel.



    Control system: The control system has been developed by ZHISHENG on its own. FFU is controlled in group or is under centralized control of PLC. It can regulate the wind speed, differential pressure, temperature and humidity of EFU (applicable to system with air conditioner).



    Other optional accessories (directly connected with related products)


    -Air shower
    -Pass Box
    -Automatic sliding door
    -Fast rolling door

    -Air conditioner

    -Pressure gauge
