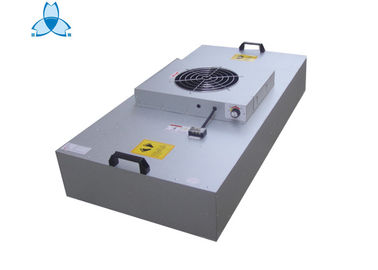

Class 100 Cleaniness FFU Fan Filter Unit Low Noise For Ultra Clean Space

Class 100 Cleaniness FFU Fan Filter Unit Low Noise For Ultra Clean Space

MOQ: 10 sets
standard packaging: plywood case
Delivery period: about 15 days upon receipt of deposit
Supply Capacity: 500set per month
Detail Information
Place of Origin
Guangdong, China (Mainland)
ชื่อแบรนด์
Zhisheng
ได้รับการรับรอง
ISO9001
Model Number
ZS-FFU1230
Size:
1230*620*350
Noise:
55dBA
Filtration Grade:
Hepa Filter
Efficiency:
H13 @0.3um
Power:
AC110V/60Hz
Optional:
Pressure gauge
Minimum Order Quantity:
10 sets
Packaging Details:
plywood case
Delivery Time:
about 15 days upon receipt of deposit
Supply Ability:
500set per month
High Light:

fan powered hepa filter

,

ffu fan filter

Product Description



Class 100 Cleaniness Mini FFU With Low Noise For Ultra Clean Space







Hepa Fan Unit



which draws in contaminated air from the top of the module, and exhausts filtered clean air vertically in a unidirectional(laminar) air stream at its base, is a self-contained fan and filter module for cleanroom applications.



Application:



FFU’s are commonly used in the construction of Class 100 to Class 100,000 cleanrooms, even forming ultra clean line, clean closet and etc…



Standard Size and Specification



Item Model ZS-FFU610 ZS-FFU915 ZS-FFU1170 ZS-FFU1220
Size for cabinet(mm) 610x610x240 915x610x240 1170x570x240 1220x610x240
Material Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304
Average Air flow(m3/h) 600 900 1080 1200
Air velocity(Tested under filter300mm) 0.35-0.6m/s
ESP 80-120pa
HEPA filter Size(mm) 610x610x69 915x610x69 1170x570x69 1220x610x69
Frame Aluminum profile
Media Fiberglass
Efficiency H13 @0.3um
Pressure Drop ≤220pa
Fan(motor) Power AC 220V/50Hz;AC110V/60Hz
Noise(dB) 52 52 52 53
Optional Control panel, Remote control, Pre filter, Pressure gauge
Weight(KG) 22 24 28 32



Drawing:

Class 100 Cleaniness FFU Fan Filter Unit Low Noise For Ultra Clean Space 0



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air velocity speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
