| MOQ: | 10 sets |
| การบรรจุแบบมาตรฐาน: | plywood case |
| ระยะเวลาการจัดส่ง: | about 15 days upon receipt of deposit |
| ความสามารถในการจัดหา: | 500set per month |

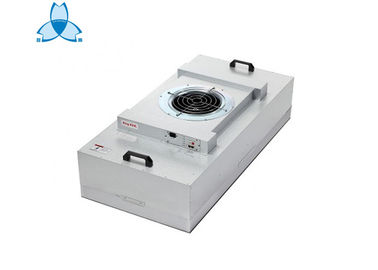

External Hepa h13 @ 0.3um Filter Fan Filter Unit Without Pre Filter
Description
FFU is the abbreviation of English, the full name is Fan Filter Units. It is a self-contained power,with the end of the filtration efficiency of the modular air supply device. FFU widely used in clean room, clean bench, clean production line, assembly type clean room box laminar flow hood and other applications. Fan from the top of the FFU will air through the HEPA filter, filtered clean air in the whole out of the wind surface to 0.45m/s + 20% of the adjustable wind speed even sent.
FFU features
Compact, lightweight design and low height cabinet, saving space, easy installation and routine maintenance
Special inlet, vibration, reducing the pressure loss and noise generation
Diffusion plate inside the apparatus, Pressure spread evenly to ensure a stable average wind surface wind speed
Standard Size and Specification
| Item Model | ZS-FFU610 | ZS-FFU915 | ZS-FFU1170 | ZS-FFU1220 | |
| Size for cabinet(mm) | 610x610x240 | 915x610x240 | 1170x570x240 | 1220x610x240 | |
| Material | Cold Rolled steel with powder coated/Galvalume sheet /SUS#201/SUS# 304 | ||||
| Average Air flow(m3/h) | 600 | 900 | 1080 | 1200 | |
| Air velocity(Tested under filter300mm) | 0.35-0.6m/s | ||||
| ESP | 80-120pa | ||||
| HEPA filter | Size(mm) | 610x610x69 | 915x610x69 | 1170x570x69 | 1220x610x69 |
| Frame | Aluminum profile | ||||
| Media | Fiberglass | ||||
| Efficiency | H13 @0.3um | ||||
| Pressure Drop | ≤220pa | ||||
| Fan(motor) | Power | AC 220V/50Hz;AC110V/60Hz | |||
| Noise(dB) | 52 | 52 | 52 | 53 | |
| Optional | Control panel, Remote control, Pre filter, Pressure gauge | ||||
| Weight(KG) | 22 | 24 | 28 | 32 | |
Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air velocity speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
|
|
