Dust Free Room HEPA Air Filter H13 H14 Economy Cardboard Frame Pleated

Dust Free Room HEPA Air Filter H13 H14 Economy Cardboard Frame Pleated

MOQ: 50 pieces
standard packaging: plywood case
Delivery period: about 15 days upon receipt of deposit
Supply Capacity: 500 pieces per month
Detail Information
สถานที่กำเนิด
Guangdong, China (Mainland)
ชื่อแบรนด์
Zhisheng
ได้รับการรับรอง
ISO 9001, Rohs
หมายเลขรุ่น
ZS-GW1220
Filter Type:
Mini Pleat HEPA Filter
Partition:
Hot melt adhesive
Size:
1220*610*69
Application:
Pharmaceutical
Weight:
6KG
Initial resistance (Pa):
≤220
จำนวนสั่งซื้อขั้นต่ำ:
50 pieces
รายละเอียดการบรรจุ:
plywood case
เวลาการส่งมอบ:
about 15 days upon receipt of deposit
สามารถในการผลิต:
500 pieces per month
High Light:

air purifier filters

,

custom air filters

Product Description



H13 H14 Mini Pleat HEPA Air Filter For Pharmaceutical , Laboratory



Description:



It is mainly used to catch dust particles in the air with the dimeter of 0.3μm and used for the terminal filtration of all kinds of filtration systems .



Applications:

HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.



Material and operating conditions:



External frame Aluminum Alloy/GI/Stainless steel
Sealant Polyurethane
Separator Clapboard or aluminum foil
Filter media Fiberglass /HV fiberglass / PP
Maximum operating temperature 80°C
Maximum operating humidity 80%
HEPA filter Efficiency ≥99.99%





Features:



1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.

2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats

3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.

4: The sealant around the media so that the air filter without any air leaking,

the frame can be wooden, aluminum,galvanized or stainless steel.

5: Laser to scan the each air filter one by one,

6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,

95%-99.99995%@0.3um (EN1822).

7: Each air filter with test report accompany



Size and Specification:

Model  Dimensions(mm) Rated air flow (m3/h)  Initial resistance (Pa) Efficiency (MPPS) Class (EN1822)
ZS-GW3051 305*305*50 180

≤110pa(PP or  PP/PET)

≤220(fiberglass) ≤120(HV fiberglass)

95% -99.995% F9-H14
ZS-GW3052 305*305*69 250
ZS-GW6101 610*610*50 700
ZS-GW6102 610*610*69 1000
ZS-GW9151

915*610*50

1100
ZS-GW9152 915*610*69 1500
ZS-GW1220 1220*610*69 2000
ZS-GW3052 305*305*80 300
ZS-GW6102 610*610*80 1300
ZS-GW9153 915*610*80 1900
ZS-GW9154 915*610*90 1900

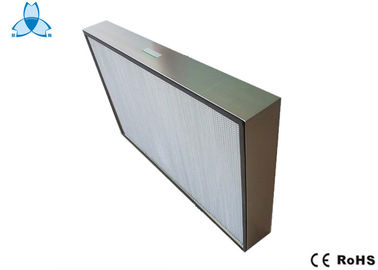

Pictures of HEPA filter

Dust Free Room HEPA Air Filter H13 H14 Economy Cardboard Frame Pleated 0







Payment Term:



30% prepayment by T/T at order, the balance of payment before shipment.



Delivery time:



Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We care of your complain within 48hours.
