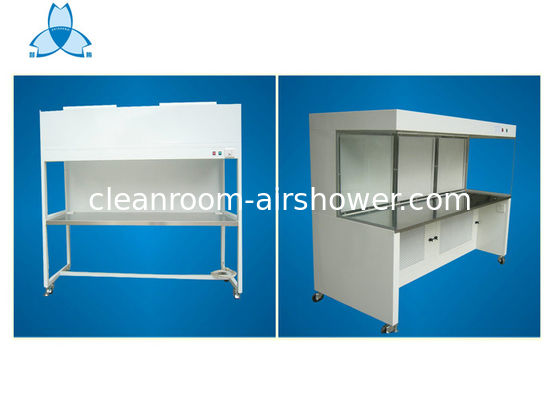

Portable Laminar Flow Clean Benches Cabinet With Material Cold Steel Plate

Portable Laminar Flow Clean Benches Cabinet With Material Cold Steel Plate

Portable Laminar Flow Clean Benches Cabinet With Material Cold Steel Plate

รายละเอียดสินค้า:

Place of Origin: Guangdong, China (Mainland)
ชื่อแบรนด์: Zhisheng
ได้รับการรับรอง: ISO9001
Model Number: ZS-CI-1340

การชำระเงิน:

Minimum Order Quantity: 1 SET
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100 set per month
ติดต่อตอนนี้
รายละเอียดสินค้า
Material: Cold rolled steel with powder coated Color: white
Size: 1340x710x1850mm Suitable person: 1-2 persons
Noise: 54dbA Purification Grade: class 100 (ISO5)



Class 100 Cleanroom Laminar Air Flow Cabinet With Material Cold Steel Plate



Low noise

Reduced vibration

Energy Efficient

Disposable prefilter



Quiet, reliable, permanently lubricated direct drive centrifugal blowers.

Long-life HEPA filter for supply airflow.

Sterile work zone environment created for optimum product protection.

Available in single, double, 1.2 and 1.8 meter (4’ and 6’) models.

Multiple units may be connected for production line applications.

Units are floor mounted with stainless steel work surfaces isolated from the main frame to reduce vibration.



Model ZS-CI-1040 ZS-CI-1340 ZS-CI-1640 ZS-CI-1950
External dimensions (W x D x H)mm 1040x710x1850 1340x710x1850 1640x710x1850 1950x710x1850
Size for working area (W x D x H)mm 960 x 615 x 800 1260 x 615 x 800 1560 x 615 x 800 1870 x615 x800
Suitable people one person one person or two people two person or three people three people
Specification of HEPA filter (mm) 915x610x69 1220x610x69 915x610x69 610x610x69 915x610x69
Quantity of HEPA filter (pcs) 1 1 1/1 2
Noise ≤53dB ≤53dB ≤54dB ≤54dB
Blow power 125W 125W 160W 125W x 2
Fluorescent lamp 20W 30W 20W x 2 30W x 2
Material of Bench top SUS304
Produce/Inspection standard US Federal standard 209E
Air velocity 0.45-0.75m/s
Voltage AC 220V/50Hz/1PH or 110V/60Hz/1Ph
Cleanliness Class 100 Class (US Federal standard 209E)
Efficiency 99.99% @0.3μm




Model ZS-SP-900 ZS-SP-1300 ZS-SP-1600 ZS-SP-1900
Dimension (W x D x H) mm 900x850x1480 1300x850x1480 1600x850x1480 1900X850X1480
Size for working area (W x D x H)mm 820x550x610 1220x550x610 1520x550x610 1820X550X610
Suitable people 1 man 1-2 men 2-3 men 3 men
Size of HEPA filter(mm) 820x610x69 1220x610x69 915x610x69 610x 610x69 915 x 610 x 69
QTY of HEPA filter (pcs) 1 1 1/1 2
Noise ≤58dB ≤58dB ≤58dB ≤62dB
Blow power 320W 320W 370W 320W
Fluorescent lamp 20Wx1 20Wx1 20W x 2 30Wx2
Material of Bench top SUS304
Produce/Inspection standard US Federal standard 209E
Air velocity 0.35-0.6m/s
Voltage 380V/50Hz/3Ph
Voltage AC 380V/50Hz/3PH, 220V/50Hz/1Ph or 110V/60Hz/1Ph
Cleanliness Class 100 class (US Federal standard 209E)
Efficiency 99.99% @0.3μm

Portable Laminar Flow Clean Benches Cabinet With Material Cold Steel Plate



Note: Customized size and specification can be acceptable.



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
