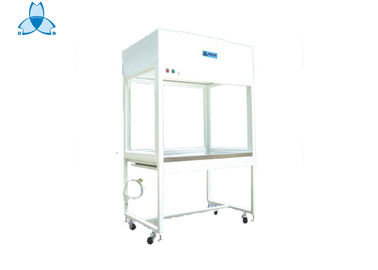

Cold Rolled Steel Vertical Laminar Flow Hood Air Flow For Pharmaceutic

Cold Rolled Steel Vertical Laminar Flow Hood Air Flow For Pharmaceutic

Cold Rolled Steel Vertical Laminar Flow Hood Air Flow For Pharmaceutic

รายละเอียดสินค้า:

Place of Origin: Guangdong, China (Mainland)
ชื่อแบรนด์: Zhisheng
ได้รับการรับรอง: ISO9001
Model Number: ZS-CI-1040

การชำระเงิน:

Minimum Order Quantity: 1 SET
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100 set per month
ติดต่อตอนนี้
รายละเอียดสินค้า
Material: Cold rolled steel with powder coated Color: white
External dimension: 1040*710*1850 Suitable person: 1 person
Noise: ≤53dbA Purification Grade: class 100 (ISO5)



Laminar Vertical Laminar Flow Cabinet / Bio-Safety Cabinet Used Pharmaceutic



Laminar flow cabinet is a specialized equipment to bring high cleanliness to partial area.



Features



1. Horizontal flow and vertical flow types are available.



2. Imported stainless steel countertops and transparent glass side fences. They make the working area look more spacious and bright.



3. Countertops can be detached from the main construction which reduces the influence from main construction's vibrancy.



4. Air velocity can be adjusted; working voltage of fan can be adjusted with touch type switch so that the air velocity in the area will always remain a good state.



Configurations optional



1. up-and-down spring type door



2. HEPA  filter



3. Ultraviolet sterilamp



4. Double-sided operating bench (can be used for making clean room assembly)



5. Non-standard clean benches are available. OEM is welcomed.



Size and specification:



Model ZS-CI-1040 ZS-CI-1340 ZS-CI-1640 ZS-CI-1950
External dimensions (W x D x H)mm 1040x710x1850 1340x710x1850 1640x710x1850 1950x710x1850
Size for working area (W x D x H)mm 960 x 615 x 800 1260 x 615 x 800 1560 x 615 x 800 1870 x615 x800
Suitable people one person one person or two people two person or three people three people
Specification of HEPA filter (mm) 915x610x69 1220x610x69 915x610x69 610x610x69 915x610x69
Quantity of HEPA filter (pcs) 1 1 1/1 2
Noise ≤53dB ≤53dB ≤54dB ≤54dB
Blow power 125W 125W 160W 125W x 2
Fluorescent lamp 20W 30W 20W x 2 30W x 2
Material of Bench top SUS304
Produce/Inspection standard US Federal standard 209E
Air velocity 0.45-0.75m/s
Voltage AC 220V/50Hz/1PH or 110V/60Hz/1Ph
Cleanliness Class 100 Class (US Federal standard 209E)
Efficiency 99.99% @0.3μm



Note: Customized size and specification can be acceptable.





Cold Rolled Steel Vertical Laminar Flow Hood Air Flow For Pharmaceutic







Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
