Chemical Fiber Filtering Media Air Filter With 6 Pockets , Customized Size

Chemical Fiber Filtering Media Air Filter With 6 Pockets , Customized Size

Chemical Fiber Filtering Media Air Filter With 6 Pockets , Customized Size

รายละเอียดสินค้า:

Place of Origin: Guangdong, China (Mainland)
ชื่อแบรนด์: Zhisheng
ได้รับการรับรอง: ISO9001, Rohs
Model Number: ZS-F7

การชำระเงิน:

Minimum Order Quantity: 100 pcs
Packaging Details: plywood case
Delivery Time: about 15 days upon receipt of deposit
Supply Ability: 1000 pieces
ติดต่อตอนนี้
รายละเอียดสินค้า
Type: pocket filter Material: synthetic pocket Filter
Class: F5 Size: 495x495x500
Color: yellow pocket filter Application: Primary Pre Air Filters



Medium Efficiency Synthetic Fiber Pocket Air Filter With 5 Pockets



Type: Filter bags
Size: 595*595*600mm
Material: Polypropylene fiber+ dacron+ABS frame
Efficiency: F7 efficiency
Usage: Fits air conditioning ventilation system and coarse and subtle dust filtration
Also can be used as the pre filter in commercial buildings and various industrial ventilation
systems, such as pharmaceutical, automotive and food manufacturing industries.

Product details:


1) air filter, non-woven pocket filter, bag filter
2) customized size
3) various kinds of frame
4) firm, leakproof

Introduction:



this series of non-woven pocket filter ( bag filter / air filter) is using firm, leak-proof design, trilateral sealed to prevent retraction or avulsion. The way of airflow inside the bag is sewing breadth wise, and sealed with a thermoplastic seal gum. Its special structure insures airflow throughout the bag balanced, reduces the resistance and maximize the dust capacity.



Features:



Product type Synthetic fiber pocket filter for second stage gas turbine
Media Synthetic fiber(3-layer) / Mircro glass fiber
Frame Galvanized /Aluminum /ABS plastic
Class F5-F9 (EN799)
Average Efficiency 45%; 65%; 85%; 95%;
Media color White, Orange(Green), Pink, Yellow
Initial pressure drop 50-120 pa (0.2-0.48 WG)
Final pressure drop 200-500 pa(0.8-2 WG)
Operating temperature 80 ºC
Humidity resistance: 100%



Application:Pocket filter is widely used as a secondary filter for central air conditioning or air handling unit.

For use in areas that require a high degree of air cleanliness including hospitals, schools, industrial facilities and office complexes. Pocket filters excel in both dust holding capacity and filter efficiency. Greater dust holding capacity means longer service life and lower operating costs



Standard size and specification:



Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
Dust-spot EN799 Frame Media
ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

Aluminum /Galvanized Sheet/

plastic

Non-woven fabric (synthetic fiber)

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5

495x495x500 (20”x20”x20”) 1800 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5

595x295x500 (24”x12”x20”) 1300 6

595x595x500 (24"x24"x20") 2600 6

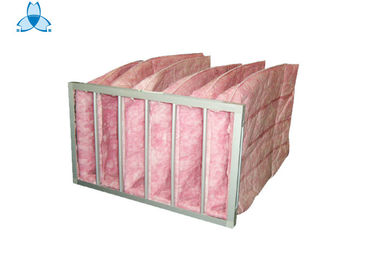

Picture:



Chemical Fiber Filtering Media Air Filter With 6 Pockets , Customized Size





Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

• Familiar with equipment.



Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.
