Air Handling Unit AHU System Bag Air Filters With High Dust Capacity , 5 Pockets

Air Handling Unit AHU System Bag Air Filters With High Dust Capacity , 5 Pockets

    • Air Handling Unit AHU System Bag Air Filters With High Dust Capacity , 5 Pockets
  • Air Handling Unit AHU System Bag Air Filters With High Dust Capacity , 5 Pockets

    รายละเอียดสินค้า:

    Place of Origin: Guangdong, China (Mainland)
    ชื่อแบรนด์: Zhisheng
    ได้รับการรับรอง: ISO9001, Rohs
    Model Number: ZS-F6

    การชำระเงิน:

    Minimum Order Quantity: 100 pcs
    Packaging Details: plywood case
    Delivery Time: about 15 days upon receipt of deposit
    Supply Ability: 1000 pieces
    ติดต่อ
    รายละเอียดสินค้า
    Shape: rectangle Material: Fiber Glass
    Class: F6 Size: 12 x 24 x 20 inch
    Color: white Type: Pocket - Type
    แสงสูง:

    bag filter systems

    ,

    air bag filter



    12 x 24 x 20 Inch Self-Supported High Dust Capacity Pocket Air Filter



    1.High Efficiency



    2.Synthetic Fiber


    3.Custom size


    4.Environmental Friendly



    Application:



    Applied for airport, hospitals and other air-conditioning ventilation systems.



    Features:



    Product type Synthetic fiber pocket filter for second stage gas turbine
    Media Synthetic fiber(3-layer) / Mircro glass fiber
    Frame Galvanized /Aluminum /ABS plastic
    Class F5-F9 (EN799)
    Average Efficiency 45%; 65%; 85%; 95%;
    Media color White, Orange(Green), Pink, Yellow
    Initial pressure drop 50-120 pa (0.2-0.48 WG)
    Final pressure drop 200-500 pa(0.8-2 WG)
    Operating temperature 80 ºC
    Humidity resistance: 100%



    Application field:

    1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations

    2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals

    3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers

    4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics

    5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster

    6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.



    Standard size and specification:



    Model Outside dimensions(mm) (WxHxD) Rated air flow(m3/h) Initial resistance (Pa) Efficiency (class) Pockets Material
    Dust-spot EN799 Frame Media
    ZS-F5 495x295x500 (20”x12”x20”) 1000 50Pa 40-50% F5 (White / Yellow) 5

    Aluminum /Galvanized Sheet/

    plastic

    Non-woven fabric (synthetic fiber)

    495x495x500 (20”x20”x20”) 1800 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

    ZS-F6 495x295x500 (20”x12”x20”) 1000 55Pa 60-70% F6 (Orange /Green) 5

    495x495x500 (20”x20”x20”) 1800 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

    ZS-F7 495x295x500 (20”x12”x20”) 1000 110Pa 75-85% F7(Pinky) 5

    495x495x500 (20”x20”x20”) 1800 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

    ZS-F8 495x495x500 (20”x20”x20”) 1800 120Pa 90-95% F8(Yellow) 5

    595x295x500 (24”x12”x20”) 1300 6

    595x595x500 (24"x24"x20") 2600 6

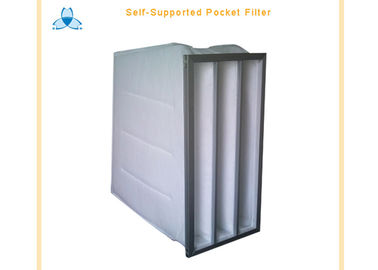

    Picture:



    Air Handling Unit AHU System Bag Air Filters With High Dust Capacity , 5 Pockets 0





    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    • Familiar with equipment.



    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.
