|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 set|
|Packaging Details:||plywood case|
|Delivery Time:||about 15 days upon receipt of deposit|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||200 Set/Sets per Month|
|Weight:||380KG||Material:||SS for base|
|Suitable:||Three person||Door:||Stainless steel 304|

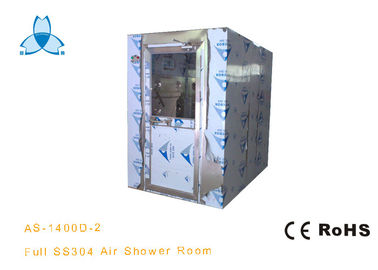

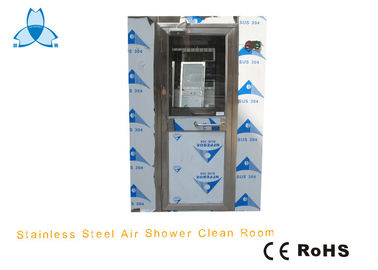

Full SUS304 Automatic Clean Air Shower For 4 Persons With Three Sides Blowing For Hospital
Doors: Stainless steel 304 frame with Half temper glass
Automatic clean air shower is an airborne pollutants barrier between clean room and the worker's gowning area and prevents
accidental contamination due to the unwanted or improper opening of the doors.
Air Shower is effectively removes the surface lint and particulates on the workers and their garments and completely drives them down
to the breeze air circulating filtration system.
Air shower is available in a very wide variety of sizes and shapes, such as using a combination of straight, right or left angle,
and U shapes, to provide a cleaning system to meet your specific application requirements.
1. Controlled by English IC control panel, electric interlocked, automatically blowing by photoelectric sensor.
2. Showing time canb e adjusted from 0-99 seconds ont the display of control panel, it is easy to control it.
3. Base and nozzles are used of stainless steel
4,firstname.lastname@example.orgμm, Efficiency can reach email@example.comμm with pre filter and hepa filter.
5. Spurt wind speed: 22-25 m/s
Food factory, Semiconductor Factory, Microelectronics Factory, Biological Pharmaceutical Factory, etc.
|Product type||Full SUS304 Automatic Clean Air Shower For 4 Persons With Three Sides Blowing For Hospital|
|Material for casing||T=1.2 Stainless steel 304 for Outside and inside casing and base|
|Material for doors||Stainless steel 304 with half glass|
|Door leaf||Single leaf|
|Door type||Manual swing door|
|Blowing way||3-side blowing,|
|Control system||English IC intelligent control panel with human voice|
|Locks||Electric mortise lock|
|HEPA filter efficinecy:||H13|
|Photoelectric sensor||OMRON brand|
|Shower time||0-99s adustable|
|Spurt wind speed||22-25m/s above|
|Safeguard||Leakage switch and thermal overload relay (Protect people from electric leakage)|
Standar size and specificaton:
|Product||Full SUS304 Automatic Clean Air Shower For 4 Persons With Three Sides Blowing For Hospital|
|External dimensions (mm)||W1400*D2000*H2100MM|
|Internal dimensions WxHxD(mm)||W800*D1900*H1960MM|
|Doors||2 sets of SS single-leaf swing door|
|Door closer||2 sets (Outside)|
|Lock||2sets of electric locks interlocked|
|Suitable person||Three person|
|Nozzles||12+12+8=32 PCS(3-side blowing )|
|Blower fan||2 sets|
|HEPA filter size||610x610x90mm|
|HEPA filter qty||4 PCS|
|HEPA filter efficiency||H13|
|Photolectric sensor||ORMON 1 PCS|
|Fluorescent Lamp||Philips 2x 20W|
|Air shower time||0-99 s Adjustable|
|Spurt wind speed||22-25m/s|
|Control system||Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor|
Air Shower Details:
Air Shower Drawing:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
